Air-to-air missiles are the defining weapon of modern air combat. From Vietnam-era Sidewinders to ramjet-powered Meteors, they've transformed aerial warfare from gun duels at knife-fighting range to beyond-visual-range engagements at 100+ miles. Understanding how these weapons work—and more importantly, how to defeat them—is critical knowledge for simulator pilots.
This guide covers the NATO and Russian arsenals, explains the Fox call terminology you hear in combat, breaks down seeker technologies, and delivers the uncomfortable truth about countermeasure effectiveness: modern missiles are very hard to fool.
The Fox Calls: Understanding Missile Categories
When you hear "Fox 1," "Fox 2," or "Fox 3" in air combat—whether real or simulated—it's NATO brevity code identifying the type of missile launched, not just a cool thing to say on the radio.
Fox comes from "F for Fire" in the older WWII-era phonetic alphabet, where the word for the letter F was literally "Fox." It predates the 1956 NATO alphabet that introduced "Foxtrot"—so the call signals that a missile has been Fired.
Fox 1: Semi-Active Radar Homing (SARH)
Fox One designates the launch of a semi-active radar-guided missile like the AIM-7 Sparrow or R-27R Alamo.
How it works:
- The launch aircraft's radar illuminates the target with continuous radar energy
- The missile has a receiver that homes in on the reflected radar energy
- The missile does not have its own transmitter—it's a passive receiver
- The launch aircraft must maintain radar lock for the entire flight until impact
Critical limitation: You can't turn away, you can't defend yourself, you can't engage another target—you're committed to guiding the missile all the way to impact. This makes Fox 1 missiles tactically inflexible.
Example weapons:
- NATO: AIM-7 Sparrow (retired from most services)
- Russian: R-27R/ER Alamo
Fox 2: Infrared Homing
Fox Two designates the launch of an infrared-guided missile like the AIM-9 Sidewinder or R-73 Archer.
How it works:
- The missile has a heat-seeking sensor that detects infrared radiation
- Early missiles (1950s-1980s) could only lock onto hot engine exhausts from behind
- Modern missiles use imaging infrared seekers that can lock from any aspect
- Once launched, the missile is fully autonomous—fire-and-forget
Advantage: Passive guidance means no radar warning, and you're free to maneuver immediately after launch.
Disadvantage: Susceptible to flares, sunlight glints, and background heat sources (historically—modern missiles are far more resistant).
Example weapons:
- NATO: AIM-9X Sidewinder, IRIS-T
- Russian: R-73 Archer, R-60
Fox 3: Active Radar Homing (ARH)
Fox Three designates the launch of an active radar-guided missile like the AIM-120 AMRAAM or R-77 Adder.
How it works:
- The missile has its own onboard radar transmitter and receiver
- Initial flight phase uses inertial guidance + datalink updates from the launch aircraft
- As the missile nears the target (typically final 20 km), it activates its own radar and locks on
- Once the missile goes "active," the launch aircraft is free to disengage
Advantage: Fire-and-forget capability at long range—launch, turn away, defend yourself or engage another target.
Disadvantage: Radar warning receivers (RWR) detect the missile's radar activation, giving the target some warning.
Example weapons:
- NATO: AIM-120 AMRAAM, Meteor, AIM-54 Phoenix (retired)
- Russian: R-77 Adder, R-37M
Historical Note: Before active radar homing missiles, "Fox 3" referred to guns. Today, gun calls use "Guns, guns, guns" instead.
Seeker Technologies: How Missiles Find Targets
Understanding seeker technology is critical because it determines what countermeasures might work.
Semi-Active Radar Homing (SARH)
Used in Fox 1 missiles, SARH seekers receive radar reflections from the launch aircraft's continuous-wave illumination.
Strengths:
- Hard to jam (requires jamming the launch aircraft's radar, not the missile)
- Resistant to chaff once locked (tracks Doppler shift, not just position)
Weaknesses:
- Launch aircraft must maintain lock (tactically limiting)
- Vulnerable to terrain masking (target flies low, breaks radar line-of-sight)
- Beam riding makes the missile predictable
Example: The AIM-7M Sparrow used an inverse monopulse seeker for look-down/shoot-down capability, improving performance in low-altitude and ECM environments. Maximum launch range was approximately 70 km (~38 nautical miles).
The Russian R-27ER Alamo extended-range variant achieved 65.5 km head-on kill range at altitude, with a 350 kg missile carrying a 39 kg continuous-rod warhead.
Infrared Homing (IR)
Traditional IR seekers detect heat signatures—primarily engine exhaust.
Early IR Seekers (1950s-1980s):
- Single-element or small-array detectors
- Rear-aspect only (could only lock from behind)
- Easily fooled by flares
- Limited field of view
Modern IR Seekers (2000s+):
- Imaging infrared (IIR) with large focal plane arrays (128×128 pixels or more)
- All-aspect capability (lock from any angle)
- Two-color or multi-spectral detection (samples multiple infrared bands)
- Advanced signal processing to reject flares
How they've improved:
The AIM-9X Sidewinder uses a 128×128 element focal-plane array (FPA) imaging seeker. Instead of seeing a "blob of heat," it sees an actual image of the target aircraft. This allows the missile to:
- Distinguish between the aircraft and flares based on shape/size
- Lock onto specific aim points (cockpit, engine)
- Track through clutter and countermeasures
The R-73 Archer features a 40-degree off-boresight seeker capability—it can lock targets significantly off the missile's centerline, enabled by helmet-mounted sights allowing pilots to look at a target and fire.
Active Radar Homing (ARH)
The most advanced category, ARH missiles are self-contained radar systems.
How they work:
The AIM-120 AMRAAM uses active transmit-receive radar guidance:
- Launch: Inertial navigation + datalink from launch aircraft
- Midcourse: Flies toward predicted intercept point using updates
- Terminal: Activates onboard radar at approximately 15-16 km (open-source estimate; the exact "pitbull" range is classified), locks target, guides to impact
Modern advancements:
The R-77M represents Russia's latest evolution with an active electronically scanned array (AESA) seeker—the same phased-array technology used in modern fighter radars. This provides:
- Better resistance to jamming
- Faster target acquisition
- Improved tracking in clutter
Imaging Infrared (IIR): The Game-Changer
Imaging infrared seekers are the reason flares don't work like they used to.
Traditional IR seekers saw a "blob" of heat. Point-source flares could saturate the seeker or appear hotter than the aircraft. Modern IIR seekers see a picture with spatial resolution.
Pattern Recognition: A flare is a small point source. An aircraft is an extended object with wings, fuselage, and engine plumes in specific positions. IIR seekers use processing algorithms to reject anything that doesn't look like an aircraft.
Even advanced spectral flares—designed to match aircraft thermal signatures in multiple infrared bands—struggle because they still don't have the spatial characteristics (shape, size, feature distribution) of a real aircraft.
The Russian Igla-S MANPADS exemplifies a third-generation dual-band (UV/IR) rosette-scanning seeker with enhanced spectral decoy rejection—and that's a shoulder-launched system. Imagine what's in a modern air-to-air missile with a true imaging seeker.
NATO Arsenal

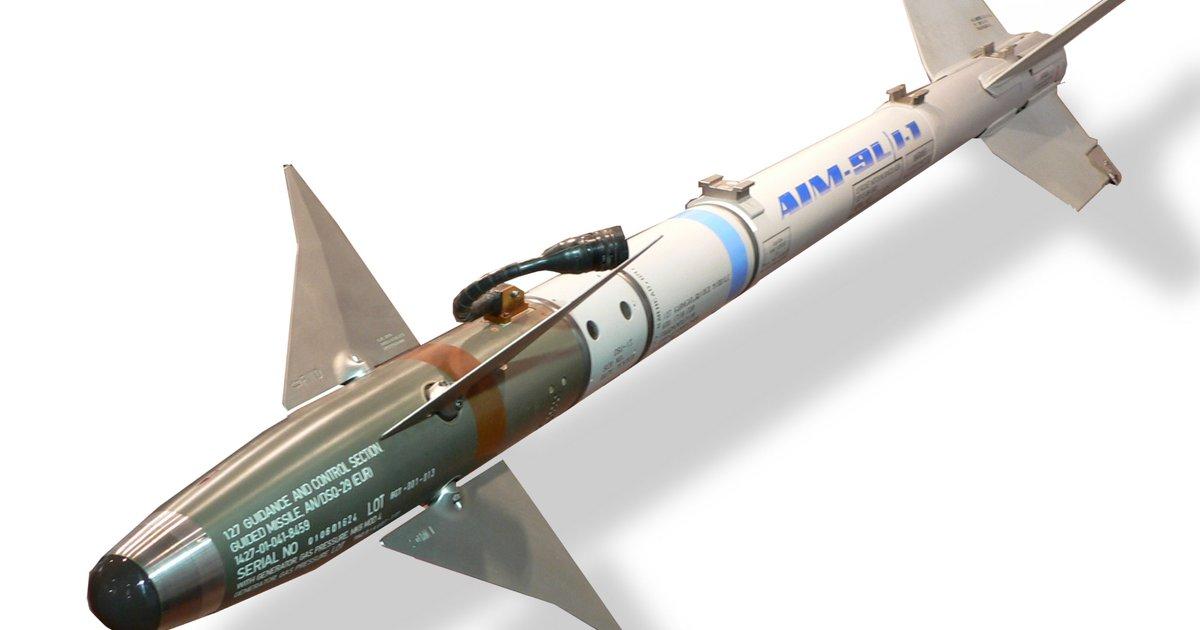

AIM-9 Sidewinder Family
The Sidewinder is the most successful Western air-to-air missile, with an estimated 270+ kills since 1958.
AIM-9X (Current):
- Seeker: 128×128 imaging infrared FPA
- Range: Maximum range well over a dozen miles
- Capability: High off-boresight (90°+ with helmet cueing), thrust vectoring for extreme maneuverability
- Launch platform: F-15, F-16, F/A-18, F-22, F-35, and more
- Fox call: Fox 2
Effectiveness: The imaging seeker and thrust vectoring make the AIM-9X nearly impossible to evade kinematically within its engagement envelope.

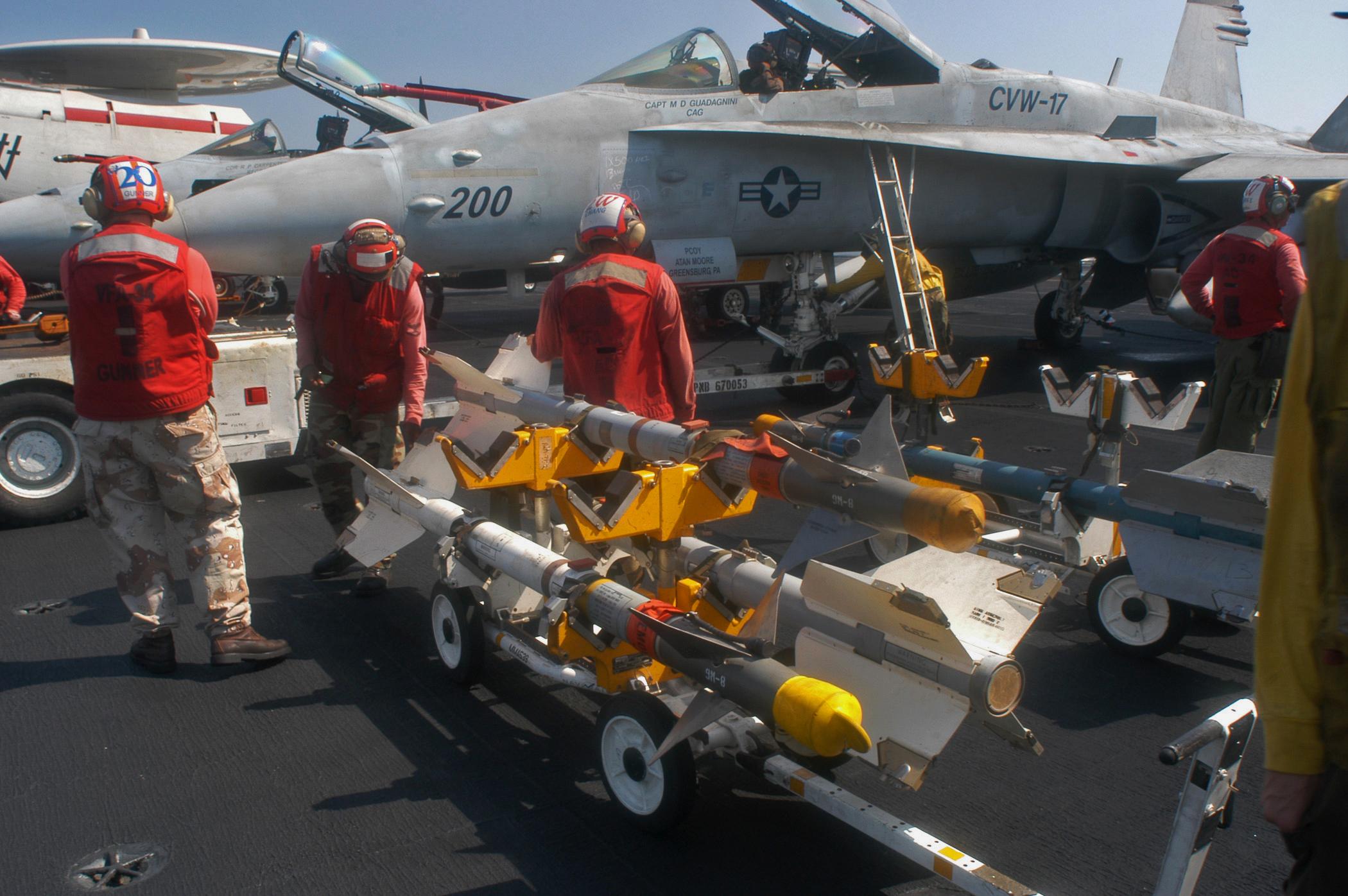

AIM-9 Sidewinder being loaded onto an F/A-18 Hornet on a carrier deck
AIM-120 AMRAAM (Advanced Medium-Range Air-to-Air Missile)
The backbone of NATO BVR combat.
AIM-120D (Current):
- Seeker: Active transmit-receive radar
- Range: Estimated 100+ miles in air-launched mode (classified)
- Capability: Two-way datalink, GPS-aided inertial navigation, improved kinematics
- Launch platform: F-15, F-16, F/A-18, F-22, F-35, Typhoon, and more
- Fox call: Fox 3
Combat record: AMRAAMs have achieved numerous kills in conflicts from the Balkans to the Middle East, with the exact number classified but estimated in the dozens.

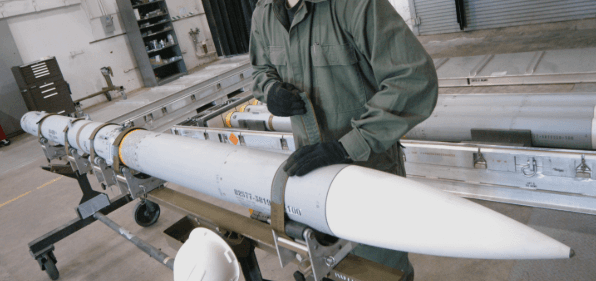

AIM-120 AMRAAM - the backbone of NATO beyond-visual-range combat

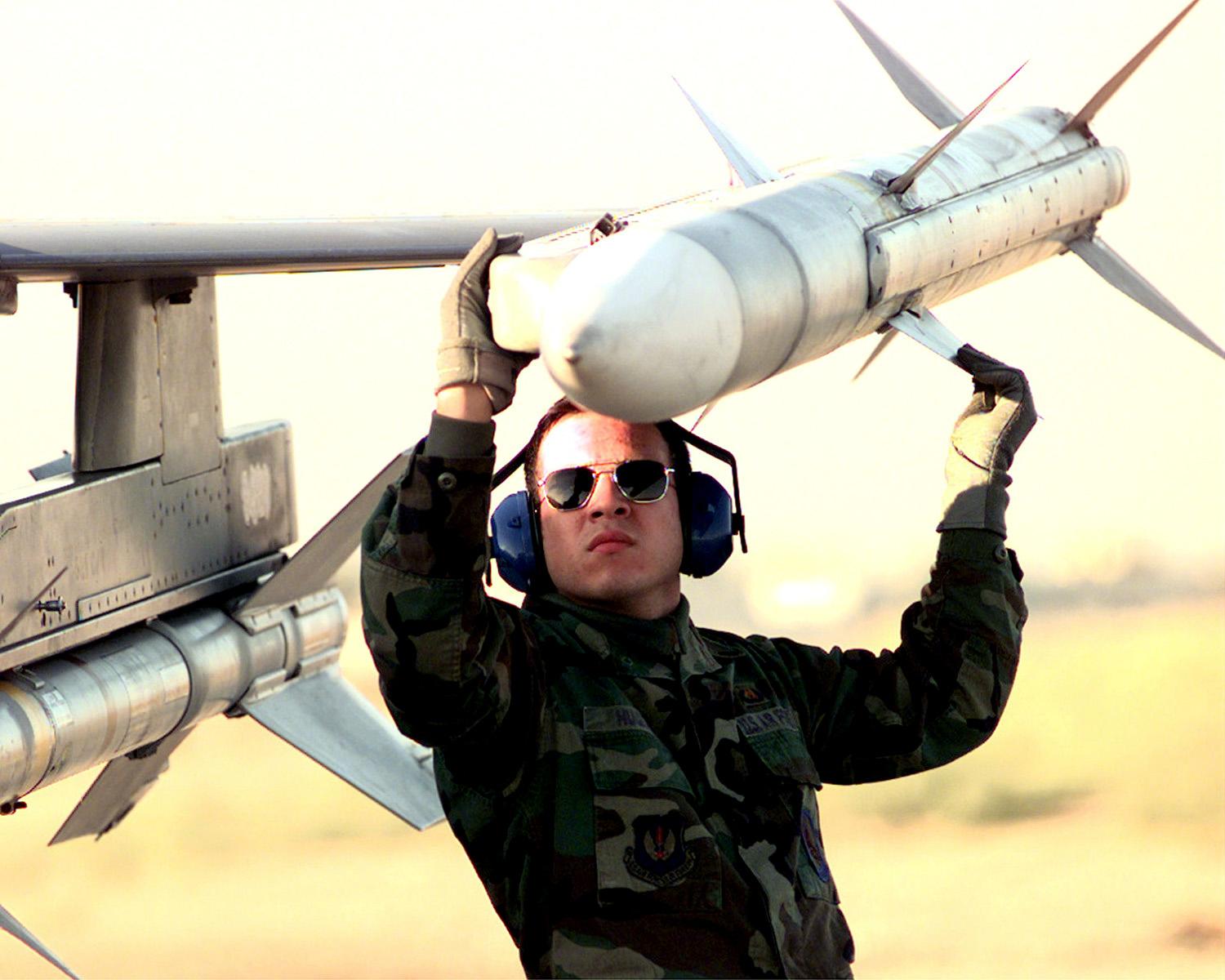

AIM-120 AMRAAM being loaded onto an F-16
Meteor
The European answer to long-range BVR dominance.
Specifications:
- Seeker: State-of-the-art active radar seeker
- Range: In excess of 100 km (MBDA official figure; some unofficial estimates put it above 200 km)
- Propulsion: Ramjet engine (critical differentiator)
- Launch platform: Rafale, Typhoon, Gripen
- Fox call: Fox 3
Why ramjet matters:
Traditional rocket motors burn out in seconds, then the missile coasts. Meteor's ramjet provides sustained thrust throughout the flight, maintaining high speed even at long range. This dramatically extends the no-escape zone—the range at which the target cannot outmaneuver the missile even with maximum defensive maneuvering.
IRIS-T (Infra Red Imaging System Tail/Thrust Vector Control)
Germany's advanced short-range missile.
Specifications:
- Seeker: Infrared Imaging System
- Range: 25 km
- Capability: Thrust vectoring, high off-boresight (90°+)
- Launch platform: Typhoon, Gripen, F-16
- Fox call: Fox 2

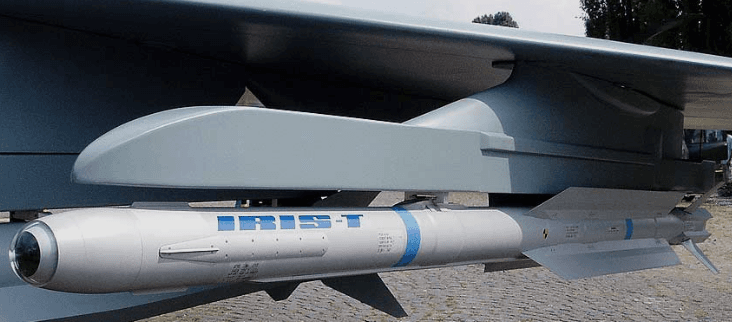

IRIS-T infrared imaging missile with thrust vectoring
AIM-7 Sparrow (Legacy)
Retired from most services, but historically significant.
Specifications:
- Seeker: Semi-active radar homing
- Range: ~70 km (~38 nautical miles)
- Limitation: Requires continuous radar illumination
- Fox call: Fox 1
Replaced by AMRAAM's fire-and-forget capability.

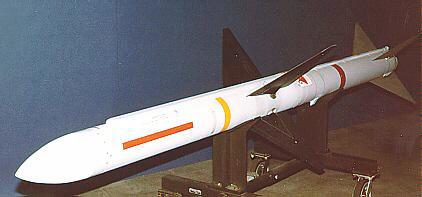

AIM-7 Sparrow - semi-active radar homing missile (legacy)
AIM-54 Phoenix (Retired 2004)
The longest-range air-to-air missile ever fielded by the U.S.
Specifications:
- Seeker: Active radar homing
- Range: Over 100 miles
- Launch platform: F-14 Tomcat (exclusive)
- Retired: September 30, 2004
- Fox call: Fox 3
Designed to defend carrier battle groups from Soviet bomber formations, the Phoenix gave the F-14 unmatched stand-off capability—but saw little combat use. F-14s retired in 2006.
Russian/Soviet Arsenal
R-73 Archer (AA-11)
Russia's dogfighting missile, equivalent to Sidewinder.
Specifications:
- Seeker: Infrared homing with 40° off-boresight capability
- Range: Maximum aerodynamic range of nearly 30 km at altitude
- Minimum range: ~300 meters
- Capability: Designed for helmet-mounted sight cueing
- Launch platform: MiG-29, Su-27, Su-35, and more
- Fox call: Fox 2 (Russian equivalent)
Tactical note: The R-73's extreme off-boresight capability revolutionized close-range combat when introduced—Western pilots were shocked to discover MiGs could fire missiles at targets 40° off the nose.
R-77 Adder (AA-12)
Russia's answer to AMRAAM.
R-77 (Basic):
- Seeker: Multi-function doppler-monopulse active radar
- Range: 80 km
- Activates radar: Within 20 km of target
- Fox call: Fox 3 (Russian equivalent)
R-77-1 (Improved):
- Range: 110 km
- Weight: 190 kg
R-77M (Latest):
- Seeker: Active electronically scanned array (AESA)
- Range: Up to 200 km
- Combat use: Reportedly deployed in Ukraine 2024-2025
The R-77M's AESA seeker is a significant technological leap, providing better jamming resistance and target tracking.
R-27 Alamo (AA-10)
A family of medium-range missiles with multiple variants.
R-27R (Semi-Active Radar):
- Seeker: Semi-active radar homing
- Range: 73 km maximum; effective kill range 2-42.5 km head-on
- Weight: 253 kg
- Warhead: 39 kg continuous-rod
- Fox call: Fox 1 (Russian equivalent)
R-27ER (Extended Range):
- Range: 117 km maximum; effective kill range 2-65.5 km head-on
- Weight: 350 kg
- Capability: Target redesignation during flight
R-27T/ET (Infrared Variants):
- Infrared homing versions with similar performance
- Fox call: Fox 2 (Russian equivalent)
The R-27 family is unique in having both radar and IR variants with interchangeable seeker heads, giving pilots flexibility to choose guidance based on tactical situation.
R-37M Axehead (AA-13)
Russia's ultra-long-range interceptor.
Specifications:
- Seeker: Semi-active or active radar homing
- Range (Official): 200 km for export RVV-BD variant
- Range (Janes estimate): 300-400 km with jettisonable booster
- Target altitude: 15 meters to 25 kilometers
- Weight: 510 kg
- Warhead: 60 kg high-explosive fragmentation
- Dimensions: 4.06 m length, 38 cm diameter
- Fox call: Fox 3 (Russian equivalent)
Design purpose: Engage high-value targets like AWACS, tankers, and bombers at extreme range. The R-37M is one of the longest-range air-to-air missiles in service worldwide.
R-60 Aphid (AA-8)
A compact short-range missile, similar to early Sidewinders.
Specifications:
- Seeker: Infrared homing
- Range: ~8 km
- Weight: 44 kg
- Use: Lightweight fighter aircraft, helicopters
- Fox call: Fox 2 (Russian equivalent)
Older technology, but widely exported and still in service in many countries.
Range Categories: BVR vs WVR
Understanding range categories helps predict how engagements will unfold.
Within Visual Range (WVR)
WVR combat occurs when combatants can see each other with their eyes—typically inside 10 nautical miles.
Characteristics:
- Classic "dogfighting" with basic fighter maneuvers (BFM)
- Predominantly IR missiles (Fox 2)
- High-G maneuvering, energy management critical
- Helmet-mounted sights allow off-boresight shots
- Countermeasures (flares, chaff) have higher effectiveness at close range
Tactics: Turning fight, vertical maneuvering, using terrain/sun, forcing overshoot, gaining angles for missile shot.
Historical note: Before long-range missiles (1950s and earlier), all air combat was WVR. World War I and II aerial combat was entirely visual-range dogfighting.
Beyond Visual Range (BVR)
BVR combat occurs when combatants engage without visual contact—typically 30-50 km or beyond, extending to 200+ km with modern missiles.
Characteristics:
- Dominated by radar-guided missiles (Fox 3, occasionally Fox 1)
- Situational awareness critical (AWACS, datalink, radar)
- First shot often wins (but not always—see below)
- Electronic warfare plays a major role
- Long flight times (missiles can take 1-2 minutes to reach distant targets)
Tactics: Radar management (go active, then go cold to deny enemy radar lock), datalink coordination with AWACS, fire multiple missiles, crank maneuver (turn roughly 50-60° to keep the target near the radar's gimbal limit—retaining lock while reducing closure rate; turning a full 90° becomes a beam/notch that drops the lock), defensive splits.
Critical misunderstanding: Many assume BVR = automatic kill. Reality is more complex—targets can notch (fly perpendicular to deny Doppler radar), go cold (turn away to increase missile time-of-flight), descend into terrain clutter, or employ jamming.
No-Escape Zone (NEZ): The Real Threat
The no-escape zone is the range at which the target cannot kinematically evade the missile even with maximum defensive maneuvering.
NEZ vs Maximum Range
A missile's maximum range (the number quoted in specs) assumes an ideal scenario:
- Target not maneuvering
- Target not using countermeasures
- Optimal altitude and speed
- Head-on engagement
In reality: Maximum range might be 100 km, but NEZ might only be 30-40 km. Outside the NEZ, a skilled pilot can defeat the missile through maneuvering alone.
Factors Affecting NEZ
Missile energy:
- Rocket-powered missiles burn out quickly, then coast (energy bleeds off)
- Ramjet missiles (Meteor) maintain thrust, extending NEZ dramatically
Target aspect:
- Head-on: Maximum NEZ (closing velocity adds to missile energy)
- Beam (perpendicular): Reduced NEZ
- Tail-on: Minimum NEZ (target is running away, missile must chase)
Altitude:
- High altitude: Thinner air = less drag = longer NEZ
- Low altitude: Denser air = more drag = shorter NEZ
Target maneuvers:
- Defensive turns force the missile to lead the turn, bleeding energy
- High-G maneuvers at the right time can force a miss
Why Meteor is feared: Its ramjet propulsion maintains energy throughout flight, meaning its NEZ is significantly larger than conventional missiles at the same range. A conventional missile might have a 30 km NEZ; Meteor's could be 60-80 km.
Countermeasures: What Works and What Doesn't
Let's address the uncomfortable truth: modern countermeasures are increasingly ineffective against advanced missiles.
Chaff: Diminishing Returns
What chaff is: Bundles of thin metallic strips (aluminum, metalized glass fiber) dispensed from aircraft to create radar reflections, confusing radar-guided missiles.
How it worked (historically): Early radar seekers tracked the largest radar return. Chaff created a huge radar signature, pulling the missile off the aircraft.
Why it doesn't work well anymore:
Modern radar systems measure Doppler effect—chaff rapidly decelerates after leaving the aircraft, creating a wavelength shift that reveals it's not the real target. Advanced seekers filter out slow-moving returns.
Additionally, frequency-hopping and adaptive algorithms allow modern missiles to distinguish chaff from actual targets.
Effectiveness:
- Against 1970s-1980s missiles: High (70-90%)
- Against 1990s-2000s missiles: Moderate (40-60%)
- Against 2010s+ missiles: Low (10-30%)
Flares: The Illusion of Safety
What flares are: Pyrotechnic countermeasures that burn at high temperatures (2000°F+) to simulate aircraft IR signatures, intended to decoy IR-guided missiles.
How they worked (historically): Early IR seekers tracked the hottest thing in their field of view. Flares burned hotter than aircraft exhausts, pulling the missile away.
Why they don't work well anymore:
Modern IR-guided missiles have sophisticated counter-countermeasures (IRCCM) that detect and reject flares. Success rates approach 100% against first- and second-generation seekers, but utility diminishes significantly against advanced imaging infrared (IIR) seekers.
IRCCM Rejection Techniques:
Modern missiles use multiple methods to detect flares:
1. Rise Time (Temporal): Flares ignite rapidly—sudden spike in IR energy. Missiles detect this sharp rise and ignore it.
2. Two-Color (Spectral): Flares and aircraft engines emit different infrared wavelengths. Multi-spectral seekers sample multiple IR bands and reject flares based on spectral mismatch.
3. Kinematic: In beam-aspect shots, if the seeker suddenly experiences a large change in line-of-sight rate (because the flare decelerates rapidly while the aircraft continues), the missile detects the anomaly and rejects the flare.
4. Spatial: Imaging seekers see the physical separation between the flare and the aircraft. Two hot objects in different parts of the field of view trigger rejection.
5. Pattern Recognition (IIR): Imaging seekers recognize aircraft shapes. A point-source flare doesn't look like an extended aircraft with wings and engine plumes. The seeker's processing software rejects anything that doesn't match the expected target profile.
Real-world example: The FIM-92 Stinger (surface-to-air, but illustrative) uses a dual IR/UV seeker in its POST (FIM-92B) and RMP (FIM-92C and later) variants—the original FIM-92A was single-band IR only—providing redundant tracking that effectively negates modern decoy flares according to U.S. sources.
Effectiveness:
- Against 1960s-1980s missiles (basic IR): High (80-95%)
- Against 1990s-2000s missiles (two-color seekers): Moderate (50-70%)
- Against 2010s+ missiles (IIR with IRCCM): Low to Very Low (10-30%)
Advanced spectral flares: The latest flares feature combat-proven spectral decoy composition designed to match aircraft signatures in multiple IR bands. They improve effectiveness slightly—but IIR seekers still reject them based on spatial/pattern differences.
DRFM: The Electronic Countermeasure Revolution
What DRFM is:
Digital Radio Frequency Memory is a system that digitally captures enemy radar signals, modifies them, and retransmits false signals that remain phase-locked to the threat radar.
How it works:
A DRFM system:
- Receives incoming radar pulse
- Digitizes it at high speed
- Stores it in memory
- Modifies delay, Doppler shift, amplitude
- Retransmits a coherent false signal
Deception techniques:
Range Gate Pull-Off (RGPO): Gradually increase the delay of retransmitted pulses, making the radar/missile think the target is farther away than it actually is. The radar tracks the false return while the real aircraft maneuvers away.
Velocity Gate Pull-Off (VGPO): Introduce Doppler shift into the retransmitted signal, making the radar think the target is moving faster/slower or in a different direction.
False Targets: Replay captured pulses multiple times to create the illusion of multiple targets, overwhelming the seeker/radar.
Effectiveness:
DRFM is highly effective against radar-guided missiles—when used correctly. The BriteCloud expendable DRFM jammer is small enough to deploy from fighter aircraft chaff/flare dispensers. Once deployed, it emits sophisticated jamming signals that trick radar-guided missiles into tracking the decoy.
Counter-countermeasures:
Modern missiles employ statistical processing techniques to detect DRFM repeat-jam signals. Advanced seekers analyze signal characteristics to differentiate real returns from replayed signals.
The arms race continues: DRFM gets more sophisticated (deeper learning algorithms, better coherent replay), missiles get smarter (better detection algorithms).
DIRCM: Laser-Based Active Defense
What DIRCM is:
Directional Infrared Countermeasure systems use laser energy to jam IR-guided missiles.
How it works:
- Missile warning system detects missile launch
- Tracking system locks onto the incoming missile
- Laser turret aims at the missile's seeker head
- Laser emits pulses that confuse or saturate the seeker, steering the missile off course
Why DIRCM is necessary:
Flares are often ineffective against advanced imaging IR seekers. DIRCM provides an active jamming solution by directly attacking the missile's sensor.
Effectiveness:
DIRCM is highly effective against IR missiles when the system detects the launch in time and achieves lock. It takes mere seconds to confuse and steer the missile away.
Limitation:
- Expensive and complex systems (mainly large aircraft like transports, helicopters)
- Requires accurate missile detection and tracking
- Limited to IR threats (doesn't help against radar-guided missiles)
Electronic Warfare: Reducing, Not Eliminating, Threats
Electronic warfare includes radar jamming, RWR (radar warning receivers), and communication disruption.
Important reality check:
Electronic warfare does not make missiles obsolete but significantly reduces their effectiveness. According to U.S. Army experts, "It's been a constant battle since that time, in what can a missile developer do to counter us, and what we can do with our countermeasures to defeat that new advanced threat."
Modern missiles use:
- Frequency agility to counter narrowband jamming
- Home-on-jam modes that guide toward jamming sources
- Inertial navigation to continue tracking even if radar/seeker is jammed
- Multi-spectral seekers that switch between radar and IR if one is jammed
Preemptive Countermeasures: The New Doctrine
Because reactive countermeasures (wait for missile launch, then deploy flares/chaff) are increasingly ineffective, modern doctrine emphasizes preemptive deployment.
Technique: Deploy flares/chaff before the missile launches, creating a distorted thermal/radar picture that degrades the missile's initial lock.
Logic: If the missile's seeker locks onto a corrupted image from the start, tracking algorithms may be less effective throughout the flight.
Effectiveness: Modest improvement over reactive deployment, but not a silver bullet. Advanced seekers still filter out most decoys.
Simulator Implications: DCS, BMS, and Beyond
Flight simulators like DCS World and Falcon BMS model missile behavior with varying degrees of accuracy. Understanding real-world missile capabilities helps you set realistic expectations.
DCS World Missile Modeling
Strengths:
- Detailed flight dynamics for missiles (energy state, kinematics)
- Modeled seeker types (IR, SARH, ARH)
- RWR, chaff, flare implementation
Limitations:
- IRCCM modeling varies by module (some missiles reject flares too easily, others not enough)
- NEZ calculations may not match real-world performance
- Electronic warfare is simplified
- DRFM and DIRCM not modeled in most scenarios
Practical advice:
- Don't rely on spamming flares—modern DCS missiles (AIM-9X, R-73M) model IRCCM
- Use terrain masking, notching, and kinematic defeats
- BVR: Go cold (turn away) when missiles are launched at you to increase time-of-flight
- WVR: Force overshoot, use vertical maneuvering, get into the opponent's control zone
Falcon BMS Missile Modeling
Falcon BMS models IRCCM to some degree—flares are not guaranteed defeats. Advanced missiles like the AIM-9M/X have programmed logic to reject flares based on parameters.
Practical advice:
- Combine countermeasures with maneuvers (flares + break turn)
- Deploy flares preemptively during threat windows
- Don't assume a flare program will save you
General Simulator Tactics
Defeating Fox 1 (SARH):
- Notch: Fly perpendicular to the threat radar to minimize Doppler return
- Terrain masking: Fly low to break radar line-of-sight
- Chaff + maneuver: Deploy chaff while turning hard to force radar to reacquire
Defeating Fox 2 (IR):
- Break turn + flares: Hard turn to increase missile off-boresight angle while deploying flares
- Against IIR missiles: Flares are less effective—focus on kinematic defeat (force overshoot, extend, deny firing solution)
- Terrain: Fly toward sun or terrain with high thermal clutter
Defeating Fox 3 (ARH):
- Go cold: Turn away and run (increases missile time-of-flight, reduces energy)
- Notch: Fly perpendicular to deny Doppler tracking
- Terrain masking: Descend into clutter
- Chaff + defensive turn: Create false returns while maneuvering
- Critical timing: React when the missile goes active (roughly 15-16 km for AMRAAM, though the exact figure is classified)—that's when you have the most information (RWR spike) and the missile is committed
Multi-missile defense: If defending against multiple missiles, prioritize the closest threat first. Don't fixate on one missile—maintain situational awareness.
Training Scenarios
To improve your defensive skills:
- Practice notching: Set up a scenario where you're targeted by SARH missiles, practice flying perpendicular to maintain notch
- BVR timelines: Learn how long it takes missiles to reach you at various ranges (AMRAAM: ~1 minute at 40 nm, ~30 seconds at 20 nm)
- WVR snapshots: Practice snapshot shots with high off-boresight IR missiles
- Countermeasure programs: Experiment with flare/chaff programs (interval, count) to find what works against specific threats
The Uncomfortable Truth: Superior Missiles Win
There's a harsh reality in modern air combat that simulator pilots need to understand: if your opponent has significantly better missiles than you, and they employ them correctly, you will likely lose.
Technology Gaps Are Brutal
A MiG-21 with R-60 missiles (8 km range, basic IR) against an F-15C with AIM-120D AMRAAM (100+ miles range, active radar) is not a fair fight. The MiG pilot is dead before they know they're being engaged.
A fighter with AIM-9L Sidewinders (all-aspect, but uncaged seeker with limited off-boresight capability) against a Su-35 with R-73 Archer (40° off-boresight, helmet cueing) will lose the close-range fight if the Russian pilot is competent.
Tactics Can Mitigate, Not Eliminate, Disadvantage
Skilled pilots with inferior missiles can improve their odds by:
- Forcing WVR fights if they have inferior BVR missiles
- Using terrain and weather to negate long-range shots
- Ambush tactics, deception, and numerical superiority
But: Against equally skilled opponents, better missiles win. This is why nations invest billions in missile development.
Real-World Example: India-Pakistan 2019
In the February 2019 skirmish, Pakistani F-16s using AIM-120C AMRAAMs engaged Indian aircraft at BVR. The long-range, fire-and-forget capability of the AMRAAM was a significant tactical advantage. While the full details are disputed, the engagement highlights that BVR missiles dictate the terms of modern air combat.
The Arms Race Continues
Missile and countermeasure development is a perpetual arms race. Each generation of countermeasures (flares, chaff, DRFM) prompts a new generation of counter-countermeasures (IRCCM, AESA seekers, home-on-jam).
Current trends:
- Hypersonic missiles: Speeds exceeding Mach 5, reducing reaction time
- AI-guided seekers: Machine learning to improve target recognition and countermeasure rejection
- Network-centric missiles: Datalink sharing between missiles and AWACS for cooperative engagement
- Dual-mode seekers: Combined radar and IR guidance for redundancy
- Directed energy weapons: Lasers for missile defense (experimental)
For simulator pilots: Stay informed about the latest developments. What's true today might not be true in five years. The F-22's dominance relies partly on AIM-120D and AIM-9X superiority—but if adversaries field equivalent or better missiles, that advantage erodes.
Conclusion: Knowledge is Survival
Understanding air-to-air missiles—how they guide, their strengths and weaknesses, and the realistic effectiveness of countermeasures—is fundamental to surviving and winning in simulated air combat.
Key takeaways:
- Fox calls matter: Fox 1 (SARH), Fox 2 (IR), Fox 3 (ARH) define missile guidance and dictate defensive tactics
- Seeker technology is evolving rapidly: Imaging infrared and AESA seekers are game-changers that render traditional countermeasures far less effective
- Countermeasures are not magic: Flares work poorly against modern IIR missiles; chaff is defeated by Doppler discrimination; only DRFM and DIRCM offer high effectiveness against advanced threats
- NEZ is the real threat: Maximum range specs are misleading—no-escape zone determines actual lethality
- Technology gaps are decisive: Better missiles win fights; tactics can mitigate but not eliminate the disadvantage
- The arms race never ends: Today's cutting-edge countermeasure is tomorrow's obsolete technology
For simulator pilots: Don't assume countermeasures will save you. Learn kinematic defeats—notching, going cold, terrain masking, energy management. Understand your missile's envelope and your opponent's envelope. Situational awareness and tactical employment matter more than spamming flares.
Respect the weapons. Modern air-to-air missiles are terrifyingly effective. The difference between survival and a simulated death often comes down to split-second decisions, tactical discipline, and understanding the threat.
If you're struggling to master missile employment and defensive tactics, consider booking a session with one of our experienced tutors. Real-time coaching during BVR and WVR engagements can help you understand seeker behavior, NEZ calculations, and kinematic defeats that are difficult to learn from videos alone—expert feedback while you fly accelerates learning dramatically.
Further Reading
- Fox Call Terminology (Wikipedia)
- AIM-120 AMRAAM (Wikipedia)
- AIM-9 Sidewinder (Wikipedia)
- R-77 Adder (Wikipedia)
- R-73 Archer (Wikipedia)
- Infrared Countermeasure Techniques Against Imaging Seekers (NATO STO)
- Digital Radio Frequency Memory (DRFM) - International Defense Security & Technology
- Chaff Countermeasures (Wikipedia)
- Flare Countermeasures (Wikipedia)
- Beyond Visual Range Missile (Wikipedia)
Understand the threat. Respect the weapons. Train realistically.
