Can You Read This Las Vegas ILS 26R Approach Plate?

ILS·Las Vegas Harry Reid International (KLAS)·RWY 26R·10 Questions·Premium

Las Vegas Harry Reid International sits in a valley ringed by mountains, and its charts show it — the ILS Z RWY 26R has an MSA reaching 12900 ft and a height above touchdown raised to 267 ft because of the terrain. The plate also features a climbing RIGHT-turn missed approach that holds at the Boulder City VORTAC, a sidestep to Rwy 26L, and a procedure-NA note for certain BLD airway arrivals. This quiz tests whether you can read a complex mountain-airport plate.

Study the plate, then answer 10 questions

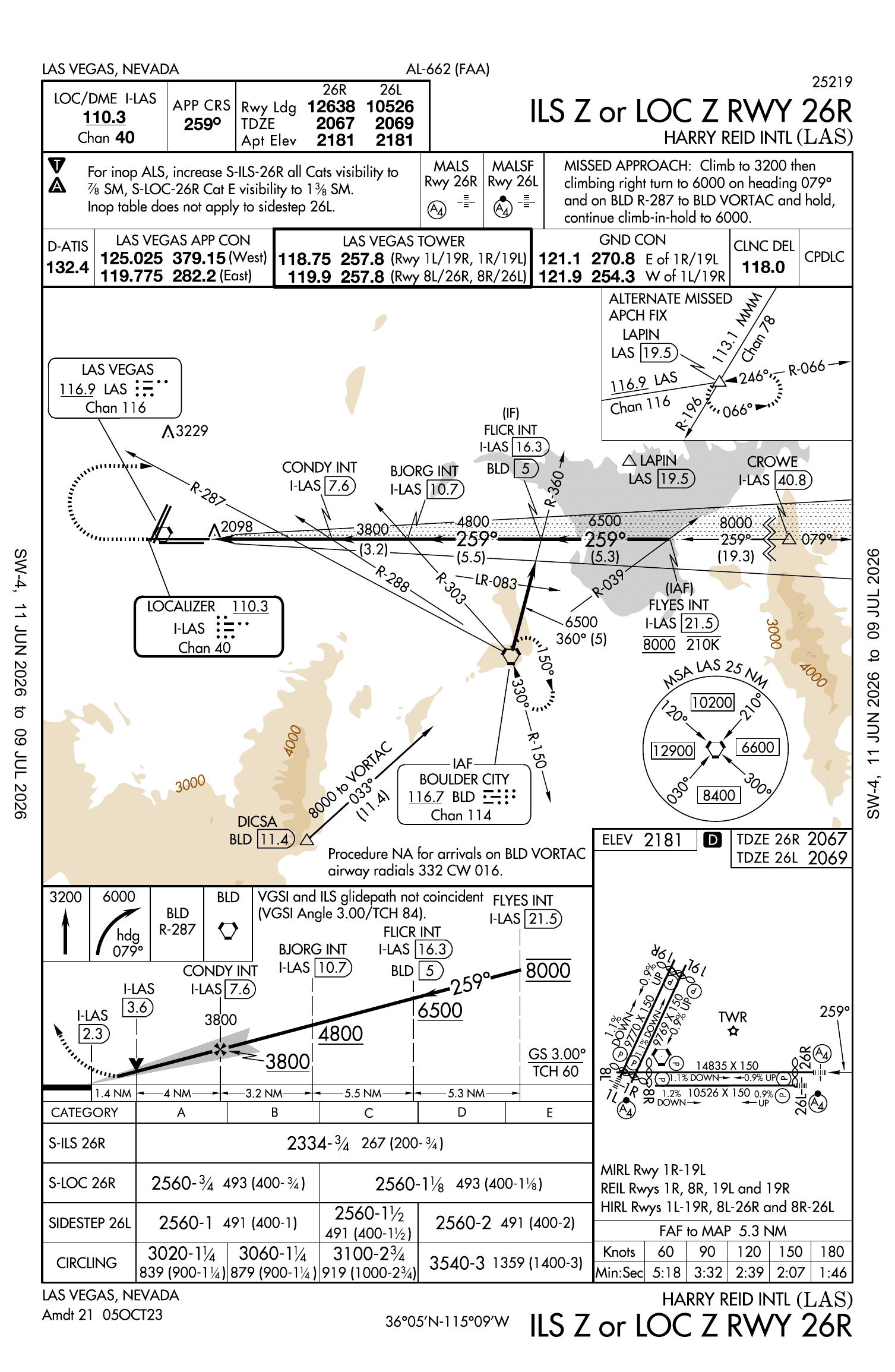

KLAS ILS Z or LOC Z RWY 26R — Las Vegas Harry Reid International approach plate

Pinch to zoom on mobile. Source: FAA AeroNav / UK AIP (public domain).

🔒
