Can You Read This Heathrow ILS 27L Approach Plate?

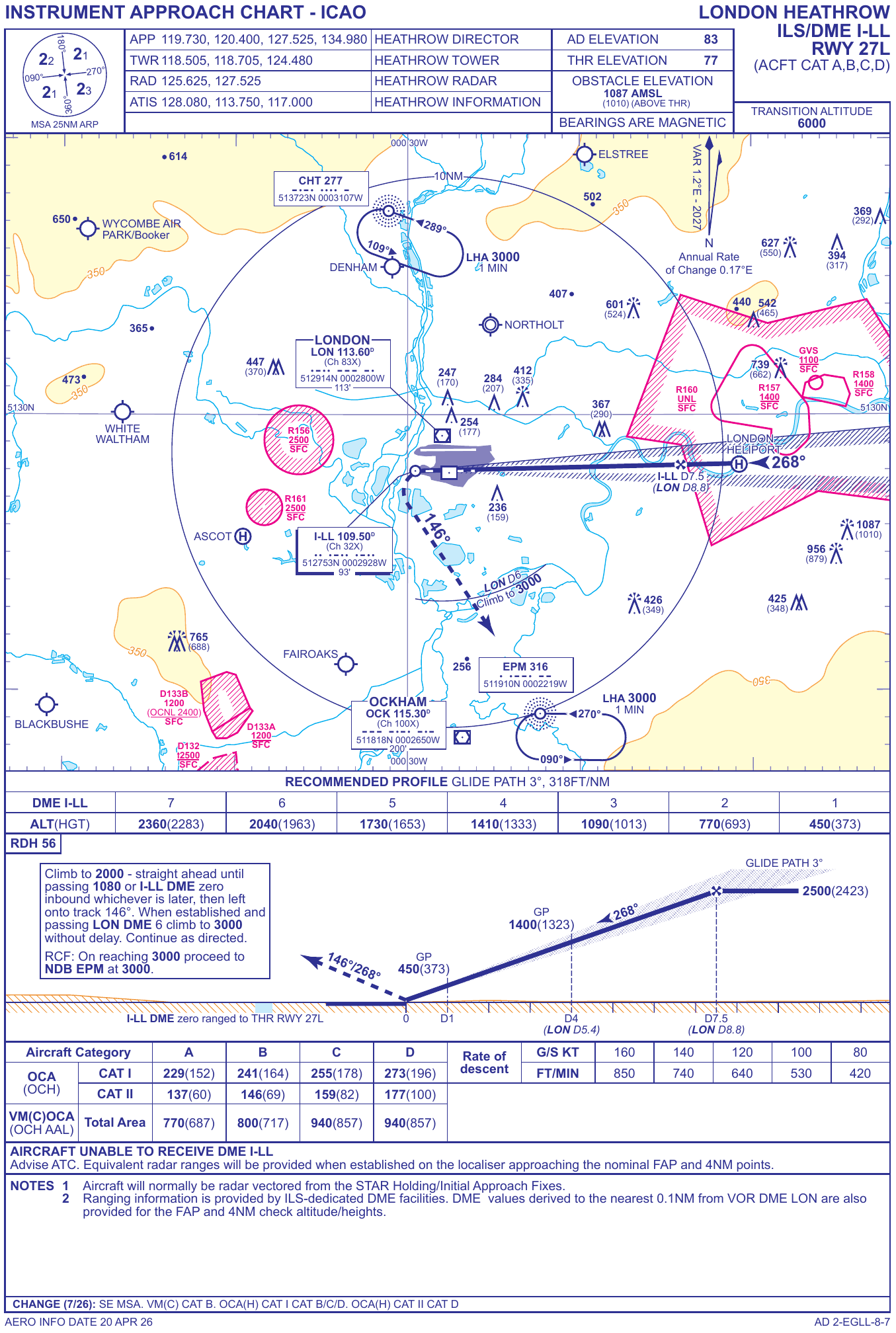

Heathrow's ILS RWY 27L is the most-flown approach in European flight simulation. UK plates use a different format to FAA plates — this quiz tests whether you can read both. Expect questions on the localiser and glideslope frequencies, decision altitude, missed approach routing, and the transition altitude that catches out pilots unfamiliar with UK airspace.
Study the plate, then answer 10 questions
Pinch to zoom on mobile. Source: FAA AeroNav / UK AIP (public domain).
Quiz
0/10 answered1. What is the ILS localiser frequency for EGLL RWY 27L?
2. What is the final approach course for the ILS RWY 27L?
3. What is the aerodrome elevation at London Heathrow?
4. What is the glide path angle for this ILS approach?
5. What is the Transition Altitude at Heathrow?
6. What is the OCA (Obstacle Clearance Altitude) for a CAT I, Category D aircraft?
7. What is the initial missed approach instruction?
8. What is the RDH (Reference Datum Height) for this approach?
9. What VOR is located at the centre of the MSA circle on the plan view?
10. What altitude and facility does the RCF (Radio Communication Failure) procedure route to?
Try another plate
Need to learn how to read approach plates first?
Our guide breaks down every section of an approach plate — plan view, profile view, minimums, and the notes that matter.
Read the approach plates guide →
